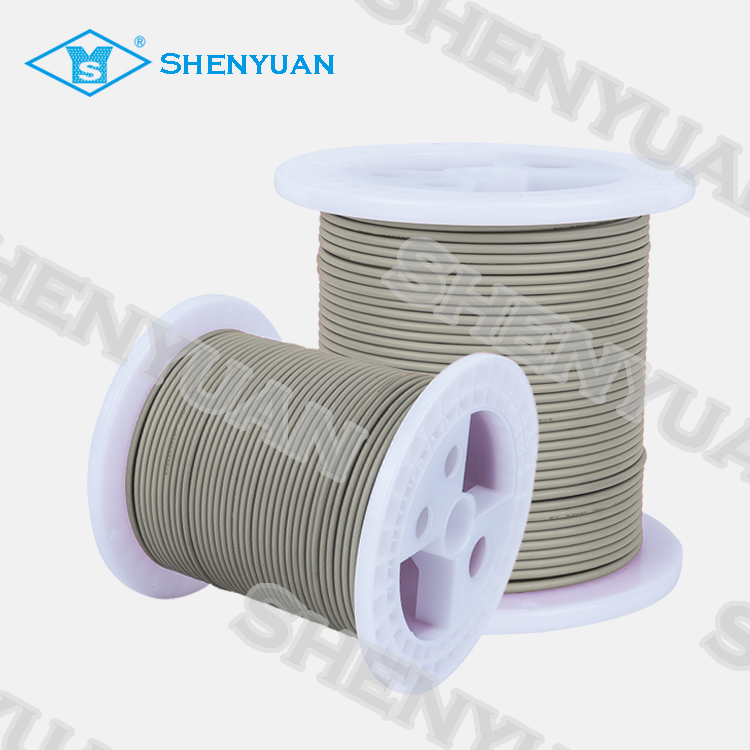

API350(Polyimide Wires Series)

Short Description:

▪AWG Size: 30AWG~12AWG,stranded or solid conductor
▪Conductor:Nickel plated copper
▪Insulation:Polyimide tape
▪Temperature range:-80~250℃(300℃ for short time)
▪Rated voltage:600V

Product Detail


Product Tags


▪ Select the Model API350-Ni according to your order

▪ -Ni: Nickel plated copper conductor

▪ Colour: Bright brown


▪ RoHS Compliant

▪ Polyimide doesn’t contain any halogen chemicals compared to the traditional fluoroplastics.

▪ Flame retardant grade: UL1581 (VW-1),IEC 60332-1-2

▪ Perfect mechanical and chemical properties

▪ Polyimide wire has better radiation resistances.There is no obvious changes in tensile strength and elongation when being exposed in the stronger irradiation rays.

▪ Better resistance to oil,strong acids, strong alkalis and strong oxidants, etc.

▪ Nonflammable.


The products are widely used in electrical wiring harnesses, sensing wires, PTC thermistors, coating equipment, automotive internal connection wires, motors, electronic appliances, aerospace wires and Specific purpose installation wires, oil pump cables, and submersible motor winding wires.


Technical Data of AK 250

AKK 250

After twenty years development, the group holds two industrial parks in Shanghai, areas where the economy has been greatly developed, covering a total land area of 20 thousand square meters. Shenyuan has serviced to 15000 customers,focus on providing customers with comprehensive solutions.


New factory and old factory: Two Manufacture Centers in Shanghai


Old factory take land over 30000 m2


New factory take land over 50000 m2 / Start operating in 2020


15000 m2 Conductor Warehouse


Manufacture Department


Manufacture Department
