UL21242/UL21242(shielded)

Short Description:

▪Jacket :Fluoropolymer
▪Number of Cores :2~19
▪Insulation:Fluoropolymer
▪Conductor:Tin or silver plated copper
▪30AWG~10AWG,stranded or solid conductor
▪Temperature range:-80~250℃
▪Rated voltage:300V
▪Compliance UL file E252215


Product Detail

FAQ

Product Tags

Options:

▪ -N: nicked copper conductor

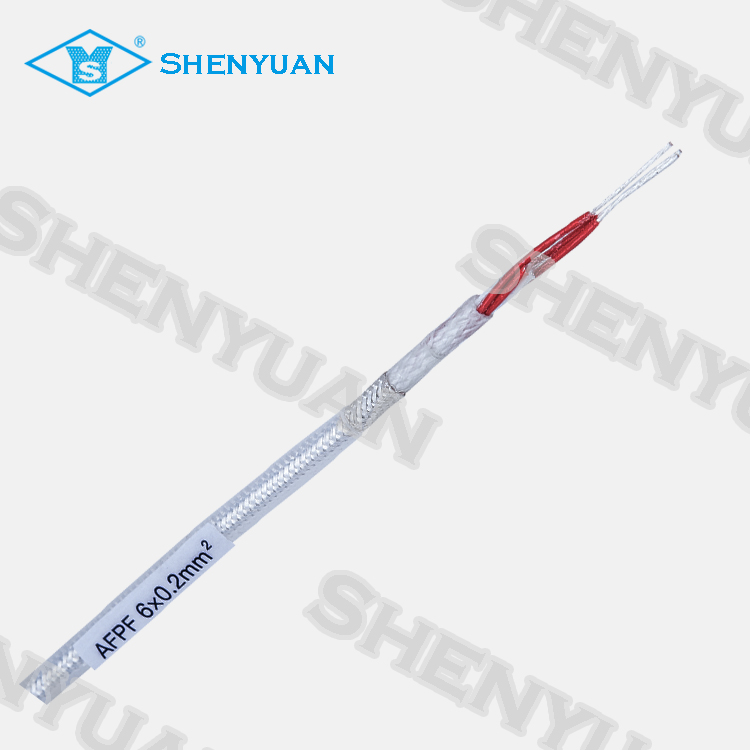

▪ -P:Shielding(optional):tinned/silver-plated copper wire braid,braid density ≥80%,code AFPF

▪ Colour:red / yellow / blue / white / black / yellow green / brown, etc.

▪ ( Two-color insulation/ Surface marking)

▪ Outer jacket color: Black/ Red / White, etc (Or matte-finish)

Characteristics:

▪ RoHS Compliant

▪ Flame retardant grade: Teflon: UL1581 (VW-1), silicone rubber: UL1581 (FT2)

Teflon :

① Good thermal stability, high temperature resistance, long-term working temperature of 200 to 260 degrees, low temperature resistance, minimum use temperature of -60 degrees.

② Excellent mechanical properties, product tensile strength and Elongation at break is high.

③ Excellent electrical properties, good insulation resistance, small high-frequency loss, suitable for high-frequency signal transmission.

④ Excellent flame retardancy, small flame diffusion range during combustion, and small amount of smoke generated. Meet the requirements of UL758

⑤ Good weather resistance. Not affected by various acids, alkalis and organic solvents.

⑥ Good for welding connections. When welding is used for connection, ordinary plastics are easy to melt at high temperatures, but Teflon has good thermal stability. Not easy to melt.;.

Application:

Suitable for ovens, electric motors, and aircraft structures, steel plants and hot rolling mills, drying rooms, solariums, sauna equipment, areas where high temperatures and extreme temperature differences occur, and areas that require electromagnetic compatibility. PTC thermistors, temperature sensors, painting equipment, automotive interior wiring, electronics, automotive lights, lighting fixtures, motors, electrical cabinets, car ignitions, ground sense coils, etc.

Technical Data of UL 21242

UL code

21242

21242(Shielded)

Voltage

300V

300V

Temp

250

250

AWG

Number of cores

OD(inches)

Weight
(KG/KM)

OD(inches)

Weight
(KG/KM)

28

2

0.0984

9.00

0.1220

18.94

3

0.1063

12.00

0.1260

21.68

4

0.1181

15.00

0.1378

26.16

5

0.1299

18.00

0.1496

29.77

26

2

0.1102

11.00

0.1299

21.92

3

0.1181

15.00

0.1378

26.34

4

0.1299

19.00

0.1496

30.85

5

0.1417

23.00

0.1614

36.23

24

2

0.1181

14.00

0.1457

26.54

3

0.1260

18.00

0.1535

31.97

4

0.1417

25.00

0.1654

38.53

5

0.1575

30.00

0.1811

45.16

22

2

0.1378

20.00

0.1614

32.89

3

0.1457

27.00

0.1693

40.49

4

0.1614

34.00

0.1890

50.91

5

0.1772

41.00

0.2047

59.85

20

2

0.1457

23.00

0.1732

38.00

3

0.1575

31.00

0.1811

47.03

4

0.1732

39.00

0.1969

57.10

5

0.1890

48.00

0.2165

68.19

18

2

0.1654

31.00

0.1929

48.53

3

0.1772

43.00

0.2008

61.14

4

0.1969

55.00

0.2205

75.08

5

0.2165

67.00

0.2402

89.57

16

2

0.1929

45.00

0.2205

64.91

3

0.2087

63.00

0.2362

86.56

4

0.2283

81.00

0.2598

112.51

5

0.2520

100.00

0.2835

134.35
