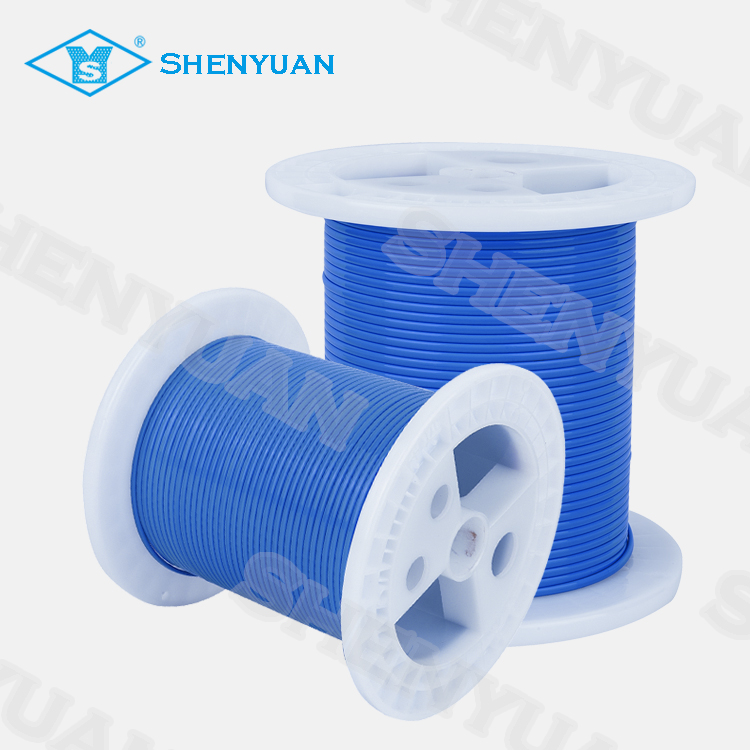

UL21590/UL21590(shielded)

Short Description:

▪Jacket :Fluoropolymer
▪Number of Cores :2~19
▪Insulation:Fluoropolymer
▪Conductor:Tin or silver plated copper
▪30AWG~10AWG,stranded or solid conductor
▪Temperature range:-80~250℃
▪Rated voltage:600V
▪Rated voltage:Compliance UL file E252215


Product Detail

FAQ

Product Tags

Options:

▪ -N: nicked copper conductor

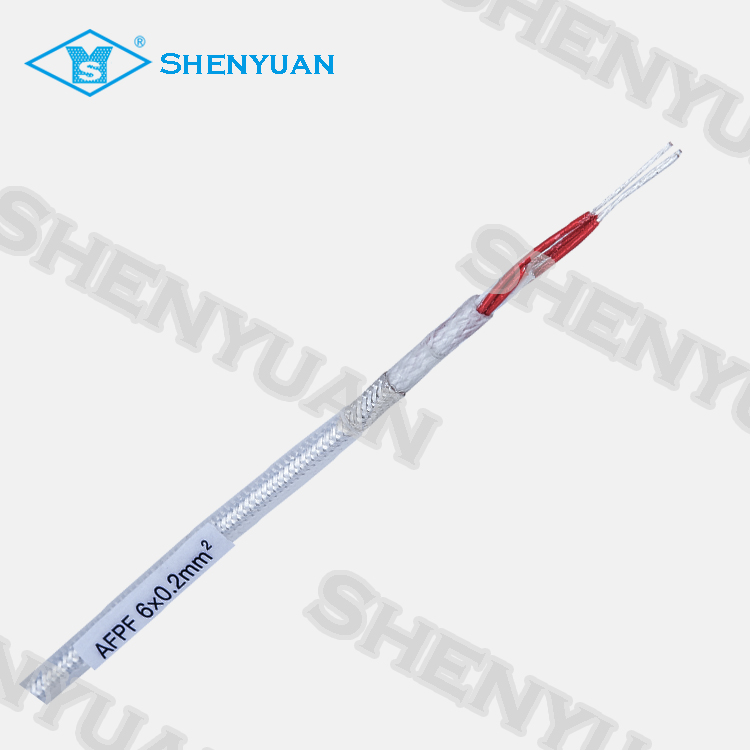

▪ -P:Shielding(optional):tinned/silver-plated copper wire braid,braid density ≥80%,code AFPF

▪ Colour:red / yellow / blue / white / black / yellow green / brown, etc.

▪ ( Two-color insulation/ Surface marking)

▪ Outer jacket color: Black/ Red / White, etc (Or matte-finish)

Characteristics:

▪ RoHS Compliant

▪ Flame retardant grade: Teflon: UL1581 (VW-1), silicone rubber: UL1581 (FT2)

Teflon :

① Good thermal stability, high temperature resistance, long-term working temperature of 200 to 260 degrees, low temperature resistance, minimum use temperature of -60 degrees.

② Excellent mechanical properties, product tensile strength and Elongation at break is high.

③ Excellent electrical properties, good insulation resistance, small high-frequency loss, suitable for high-frequency signal transmission.

④ Excellent flame retardancy, small flame diffusion range during combustion, and small amount of smoke generated. Meet the requirements of UL758

⑤ Good weather resistance. Not affected by various acids, alkalis and organic solvents.

⑥ Good for welding connections. When welding is used for connection, ordinary plastics are easy to melt at high temperatures, but Teflon has good thermal stability. Not easy to melt.;.

Application:

Suitable for ovens, electric motors, and aircraft structures, steel plants and hot rolling mills, drying rooms, solariums, sauna equipment, areas where high temperatures and extreme temperature differences occur, and areas that require electromagnetic compatibility. PTC thermistors, temperature sensors, painting equipment, automotive interior wiring, electronics, automotive lights, lighting fixtures, motors, electrical cabinets, car ignitions, ground sense coils, etc.

Technical Data of UL 21590

UL code

21590

21590(Shielded)

Voltage

600V

600V

Temp

250

250

AWG

Number of cores

OD(inches)

Weight
(KG/KM)

OD(inches)

Weight
(KG/KM)

28

2

0.0906

8

0.1102

16

3

0.0945

10

0.1181

19

4

0.1024

12

0.1260

22

5

0.1142

15

0.1339

25

26

2

0.0984

10

0.1220

20

3

0.1063

13

0.1260

23

4

0.1142

16

0.1378

28

5

0.1260

19

0.1496

32

24

2

0.1102

12

0.1339

24

3

0.1142

16

0.1417

29

4

0.1260

21

0.1535

34

5

0.1378

25

0.1654

40

22

2

0.1260

17

0.1496

30

3

0.1339

23

0.1575

37

4

0.1457

29

0.1732

46

5

0.1614

36

0.1890

54

20

2

0.1339

21

0.1614

35

3

0.1457

28

0.1693

43

4

0.1575

36

0.1850

52

5

0.1732

43

0.2008

62

18

2

0.1535

28

0.1811

45

3

0.1654

39

0.1890

56

4

0.1811

50

0.2087

70

5

0.2008

62

0.2283

83

16

2

0.1811

42

0.2087

61

3

0.1969

59

0.2244

81

4

0.2165

76

0.2441

101

5

0.2362

93

0.2677

126
