Short Description:

▪Conductor: Tin plated copper
▪Temperature range:-60~150℃
▪16AWG~30AWG,stranded or solid
▪Rated voltage:300V
▪Compliance UL file E252215
▪Insulation:Extruded Silicone Rubber with impregnated glass fiber braid

Product Detail


Product Tags


▪ -J: High-strength silicone rubber,Tear-resistant

▪ -ZR: high flame retardant silicone rubber,meet FT1

▪ -TR: Ultra-fine tinned copper stranded wire (IEC 60228, category 6 standard / class 6)

▪ Braiding Colour:red / yellow / blue / white / black / yellow green / brown, etc.


▪ RoHS Compliant

▪ UL 758 Appliance Wiring Material

▪ Flame retardant grade: UL1581 (FT2)

▪ The braid layer can prevent The influence of external force (friction, mechanical strong impact) directly erodes the insulation layer of the wire, ensuring the normal use of the wire and cable;

▪ Protect the insulating layer and the protective layer from being directly or slightly damaged by various light radiation, high temperature, humidity, and various chemicals, so that the insulating layer has accelerated aging and shortens the life of the product;


The products are widely used in electrical wiring harnesses, sensing lines, PTC thermistors, coating equipment, automotive internal connection lines, motors, lighting fixtures, electronic appliances, voltage cabinets, high-voltage motors, and other fields.

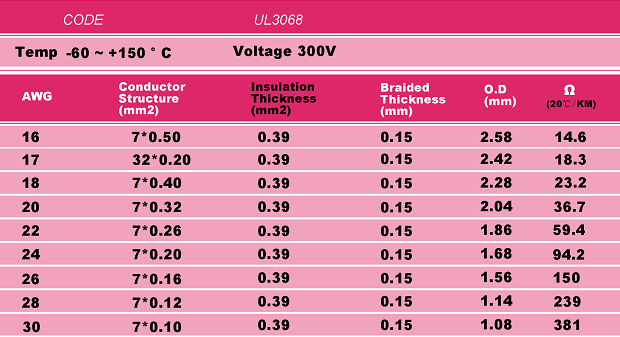

Technical Date of UL 3068


UL Certificate

Shanghai Shenyuan Hi-temp Wire Co.,Ltd is a well experienced Silicone rubber wire supplier. Since 1997 we've been producing a wide variety of Silicone rubber wires, Own model to UL approved silicone rubber wires as following:

UL3068 UL3069 UL3605 UL3071

UL3074 UL3075 UL3122 UL3513

UL 认证

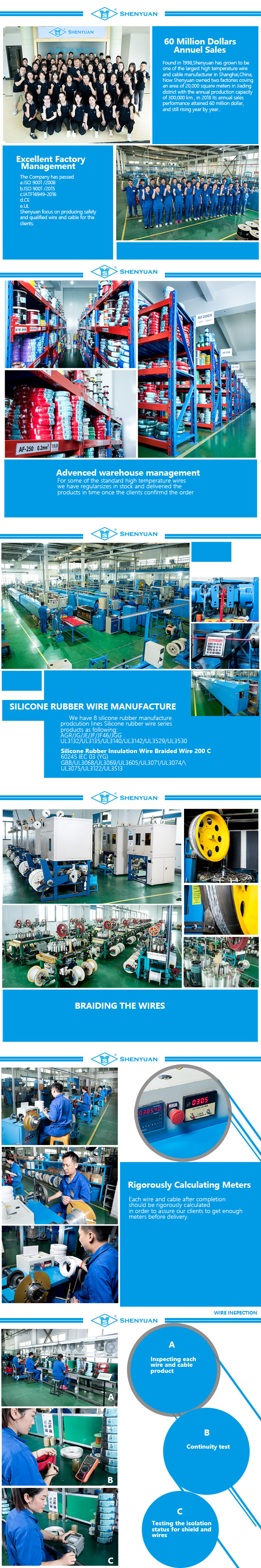

New factory and old factory : Two Manufacture Centers in Shanghai


Old factory take land over 30000 m2


New factory take land over 50000 m2 / Start operating in 2020


Conductor Warehouse


Manufacture Department


Manufacture Department
