JF

Short Description:

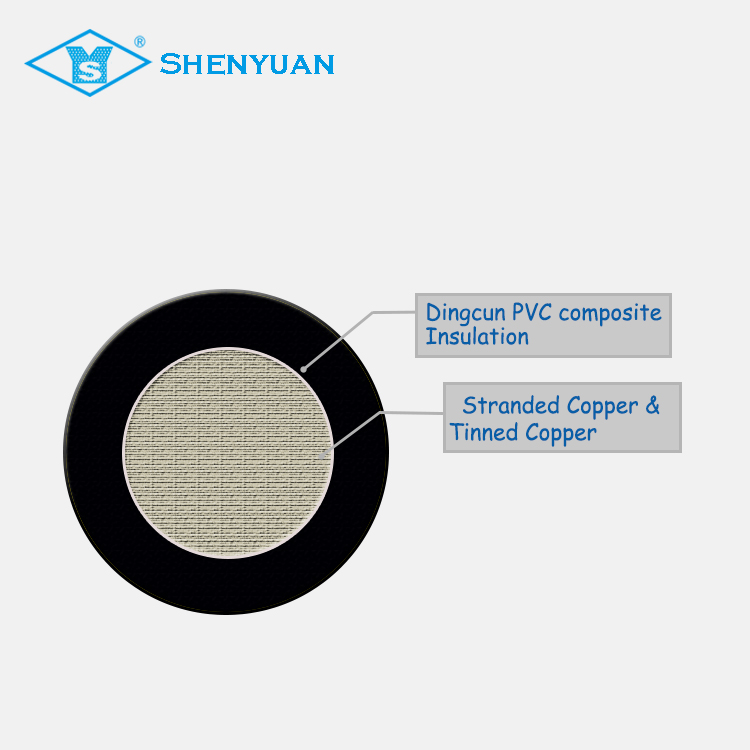

▪0.5mm²~50mm²,stranded or solid
▪Conductor:Copper or Tin plated copper
▪Insulation:Dingcun PVC composite insulation
▪Temperature range:-20~105℃
▪Rated voltage:500V(690V)


Product Detail

FAQ

Product Tags

Options:

▪ We can offer the copper or the tinned copper

▪ Braiding Colour:red / yellow / blue / white / black / yellow green / brown, etc.

(Surface marking)

Characteristics:

▪ RoHS Compliant

▪ Flame retardant grade: UL1581 (FT2)

▪ The cable is flame-retardant, oil-resistant, flexible and easy to install.

Application:

The product is suitable for class E, class B insulated motors and electrical leads with AC rated voltages of 690V, 1140V and below, and is widely used in high-power motors.

Technical Data of JF

Code

JF

Temp

105

Voltage

500V

AWG

Ω

OD(inches)

20

40.1

0.0866

19

26.7

0.0945

17

20.0

0.1024

16

13.7

0.1102

13

8.21

0.1378

12

5.09

0.1732

10

3.39

0.2205

9

2.55

0.2441

8

1.95

0.2756

6

1.24

0.3228

4

0.80

0.4016

2

0.565

0.4409

1

0.393

0.5315
