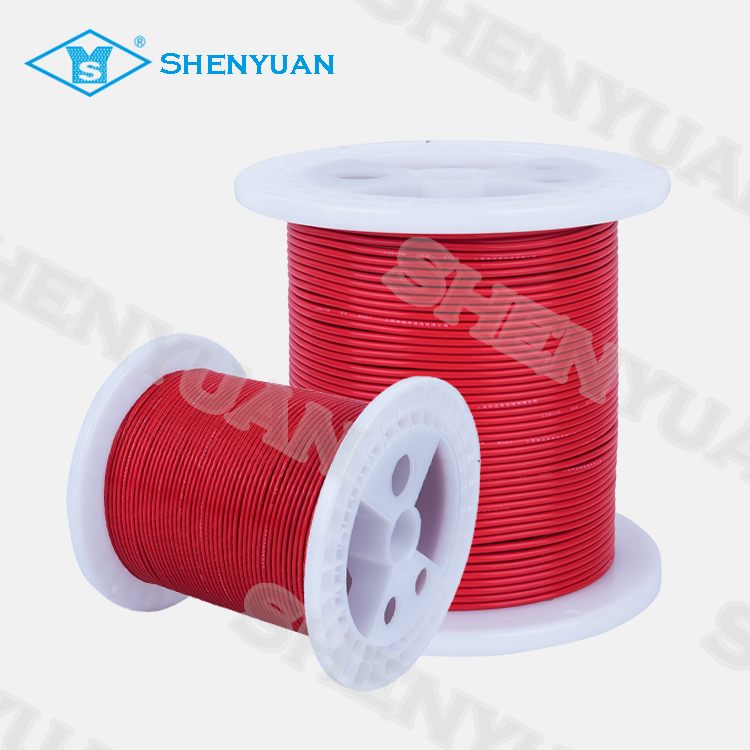

JF46

Short Description:

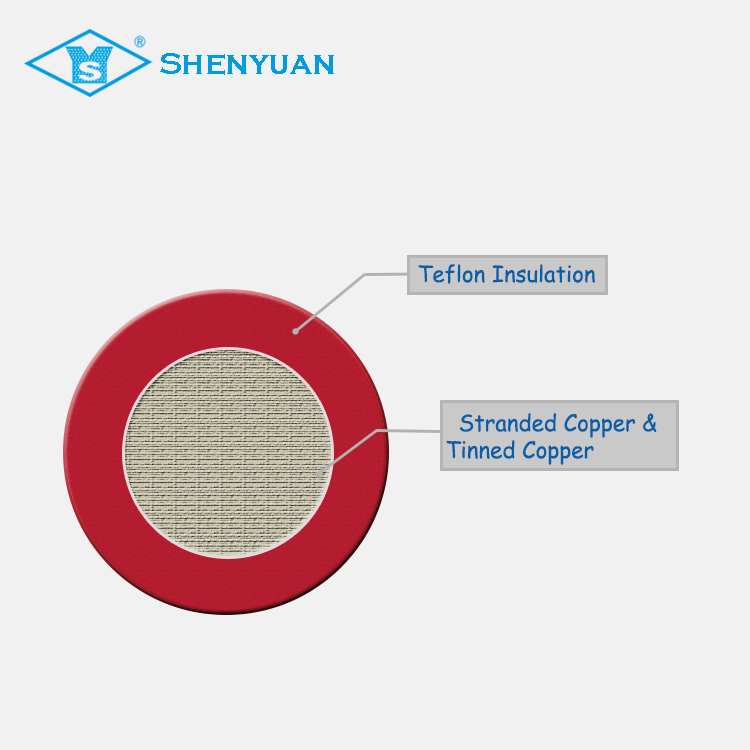

▪0.5mm²~50mm²,stranded or solid
▪Conductor:Copper or Tin plated copper
▪Insulation:Teflon
▪Temperature range:-60~200–200℃
▪Rated voltage:600V(690V)、1000V(1140V)


Product Detail

FAQ

Product Tags

Options:

▪ We can offer the copper or the tinned copper

▪ Braiding Colour:red / yellow / blue / white / black / yellow green / brown, etc.

(Surface marking)

Characteristics:

▪ RoHS Compliant

▪ Flame retardant grade: UL1581 (VW-1)

▪ It has excellent high temperature resistance, low temperature resistance, excellent electrical insulation performance, flame retardancy, unique self-lubricity, non-stickiness,excellent chemical stability, excellent chemical resistance, and is not subject to various acids, Influence of alkali, oxidant, organic solvent.

Application:

The product is suitable for the H rated of 600V (690V) and 11000V (1140V) and below AC rated voltage, and the lead wire of insulated motor and electrical appliance above the H level. It is widely used in rare earth permanent magnet motor and servo motor.

Technical Data of JF46

Code

JF

Temp

200-250

Voltage

600V

1000V

AWG

Ω

OD(inches)

OD(inches)

20

40.1

0.0551

0.0748

19

26.7

0.0669

0.0846

17

20.0

0.0709

0.0906

16

13.7

0.0945

0.1102

14

9.90

0.1063

0.1220

13

8.21

0.1181

0.1299

12

5.09

0.1417

0.1496

10

3.39

0.1693

0.1811

9

2.55

0.1969

0.2008

8

1.95



0.2205

6

1.24



0.2677

4

0.80



0.3228

2

0.565



0.3622

1

0.393



0.4488
