AFF/AFPF(Fluoroplastic cable)300v

Short Description:

▪Jacket :Fluoropolymer
▪Number of Cores :2~19
▪Insulation:Fluoropolymer
▪Conductor:Tin or silver plated copper
▪30AWG~10AWG,stranded or solid conductor
▪Temperature range:-80~200℃/-80~250℃
Rated voltage:Compliance UL file E252215


Product Detail

FAQ

Product Tags

AF Series Multi-core cables (PFA Jacket +PFA insulation)

Shanghai Shenyuan Hi-temp Wire Co.,Ltd is a well experienced Multi-core cable

supplier. Since 1997 we've been producing a wide variety of Multi-core cable , ranging from our Own mode YGZ/YGZP, YGC/YGCP,YGZF and AF Series, Muti-core cable to UL Certified High Temperature Cable as following:

UL4600 UL4622 UL2895

UL20710 UL21242 UL21590

Our Model: AF Series Multi-core cables take FEP or PFA as the outer Jacket and the inner insulation of the single core is FEP or PFA .

It has two voltages :300V/500V

The section area is : 2* 0.35 mm2 to 7*1 mm2,The outer diameter of the Jacket is : 3.1mm to 6.2mm

_DSC2404_副本
_DSC2429_副本

Shanghai Shenyuan Hi-temp Wire Co.,Ltd is a well experienced Multi-core cable

supplier. Since 1997 we've been producing a wide variety of Multi-core cable , ranging from our Own mode YGZ/YGZP, YGC/YGCP,YGZF and AF Series, Muti-core cable to UL Certified High Temperature Cable as following:

UL4600 UL4622 UL2895

UL20710 UL21242 UL21590

Our Model: AF Series Multi-core cables take FEP or PFA as the outer Jacket and the inner insulation of the single core is FEP or PFA .

It has two voltages :300V/500V

The section area is : 2* 0.35 mm2 to 7*1 mm2,The outer diameter of the Jacket is : 3.1mm to 6.2mm

Cabling
_DSC2532_副本
_DSC2544_副本

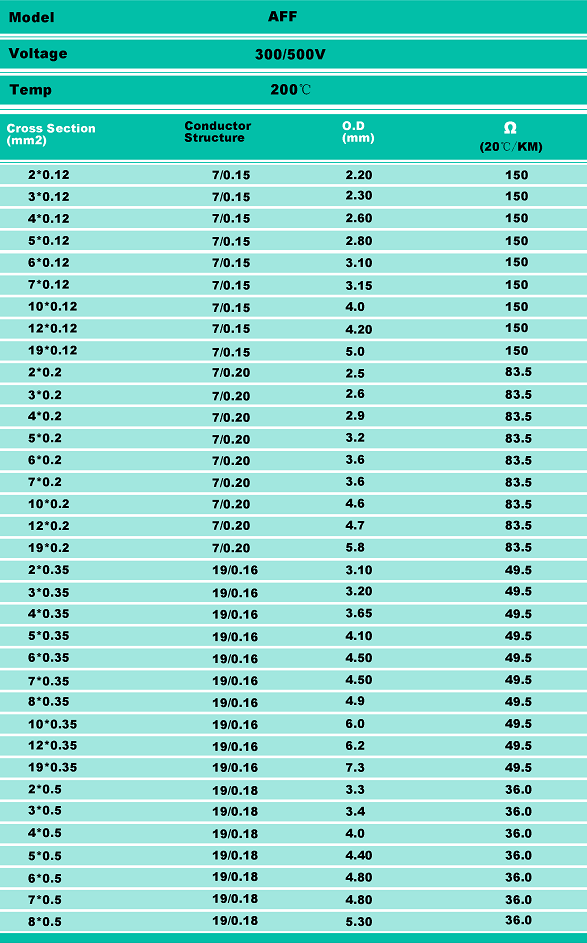

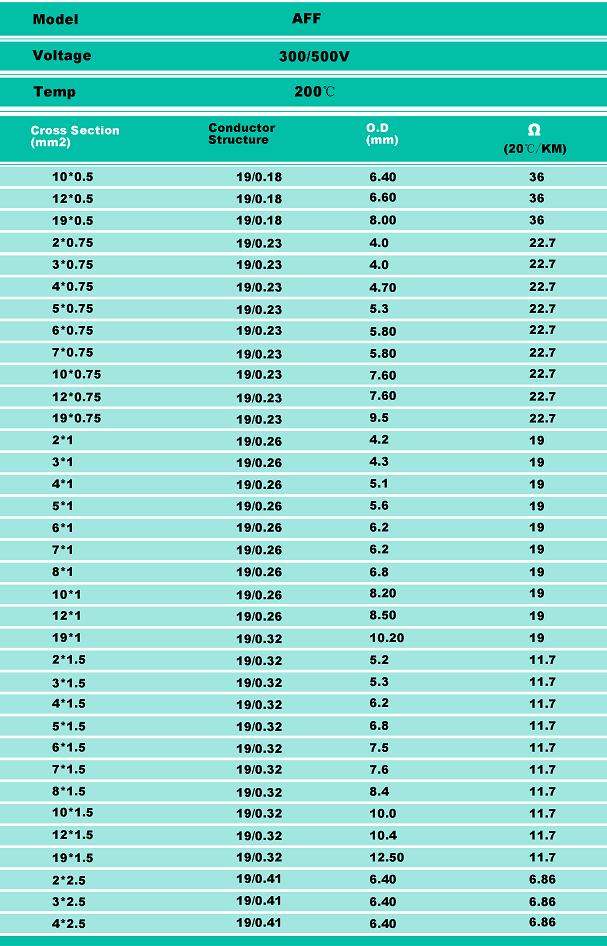

Technical data

AFF
AFF2
