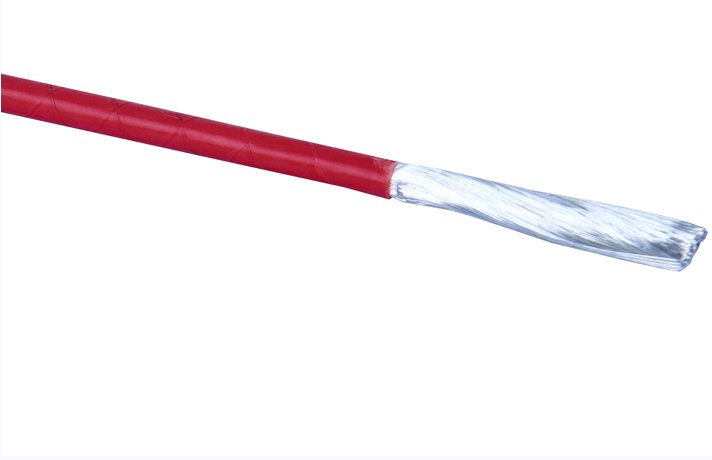

PTFE taped wires AFR200
Product performance: It can be used in a long-term humid environment. It has excellent electrical performance, waterproof and anti-mold performance, excellent bending performance, outstanding aging resistance and chemical resistance, and is not eroded by strong corrosive chemical reagents.
|
Conductor |
Finished Outer diameter |
Conductor resistance when 20 ℃ maximumΩ/km |
|||||||
|
Cross section mm2 |
Number of cores/wire diameter mm |
Nominal diameter mm |
250V |
300V |
600V |
||||
|
Insulation thickness |
Outer Diameter |
Insulation thickness |
Outer Diameter |
Insulation thickness |
Outer Diameter |
||||
|
0.035 |
7/0.08 |
0.24 |
0.10 |
0.45±0.05 |
0.17 |
0.59±0.05 |
|
|
568 |
|
0.05 |
10/0.08 |
0.29 |
0.10 |
0.50±0.05 |
0.17 |
0.64±0.05 |
|
|
365 |
|
0.07 |
14/0.08 |
0.35 |
0.14 |
0.62±0.05 |
0.17 |
0.70±0.05 |
|
|
291.4 |
|
0.08 |
16/0.08 |
0.37 |
0.14 |
0.68±0.05 |
0.17 |
0.72±0.07 |
0.21 |
0.80±0.10 |
245 |
|
0.10 |
21/0.08 |
0.42 |
0.14 |
0.72±0.05 |
0.17 |
0.77±0.07 |
0.25 |
0.95±0.10 |
200 |
|
0.12 |
24/0.08 |
0.45 |
0.14 |
0.75±0.05 |
0.17 |
0.80±0.07 |
0.25 |
0.95±0.10 |
170 |
|
0.15 |
30/0.08 |
0.48 |
0.14 |
0.80±0.05 |
0.17 |
0.83±0.07 |
0.25 |
0.98±0.10 |
145.7 |
|
0.20 |
42/0.08 |
0.60 |
0.14 |
0.90±0.07 |
0.17 |
0.95±0.07 |
0.25 |
1.10±0.10 |
90.4 |
|
0.35 |
75/0.08 |
0.80 |
0.14 |
1.10±0.07 |
0.17 |
1.15±0.07 |
0.25 |
1.30±0.10 |
53.1 |
|
0.50 |
105/0.08 |
0.90 |
0.14 |
1.20±0.07 |
0.17 |
1.25±0.07 |
0.25 |
1.40±0.10 |
40.1 |
|
0.75 |
150/0.08 |
1.15 |
0.14 |
1.40±0.07 |
0.17 |
1.50±0.07 |
0.25 |
1.65±0.10 |
24.6 |
|
1.0 |
200/0.08 |
1.30 |
|
|
0.20 |
1.72±0.10 |
0.25 |
1.80±0.10 |
20.4 |
|
1.2 |
240/0.08 |
1.40 |
|
|
0.20 |
1.82±0.10 |
0.25 |
1.91±0.10 |
16.6 |
|
1.5 |
300/0.08 |
1.60 |
|
|
0.20 |
2.02±0.10 |
0.25 |
2.10±0.10 |
12.7 |
|
2.0 |
400/0.08 |
1.84 |
|
|
0.20 |
2.26±0.10 |
0.25 |
2.35±0.10 |
10.0 |
|
2.5 |
500/0.08 |
2.05 |
|
|
0.20 |
2.47±0.10 |
0.25 |
2.55±0.10 |
7.43 |
|
3.0 |
595/0.08 |
2.40 |
|
|
0.30 |
3.05±0.20 |
0.35 |
3.25±0.20 |
6.00 |
|
3.5 |
700/0.08 |
2.50 |
|
|
0.30 |
3.15±0.20 |
0.40 |
3.35±0.20 |
5.40 |
|
4.0 |
798/0.08 |
2.80 |
|
|
0.30 |
3.40±0.20 |
0.40 |
3.60±0.20 |
4.51 |
|
5.0 |
994/0.08 |
3.15 |
|
|
0.30 |
3.80±0.20 |
0.40 |
4.00±0.20 |
3.80 |
|
6.0 |
1197/0.08 |
3.45 |
|
|
0.30 |
4.10±0.20 |
0.40 |
4.30±0.20 |
3.16 |
