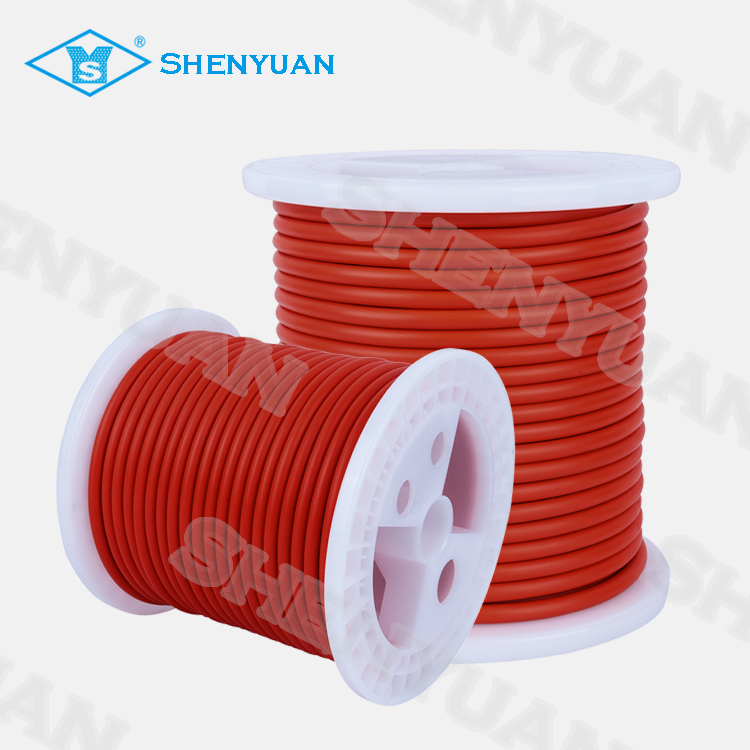

UL1911
Options：

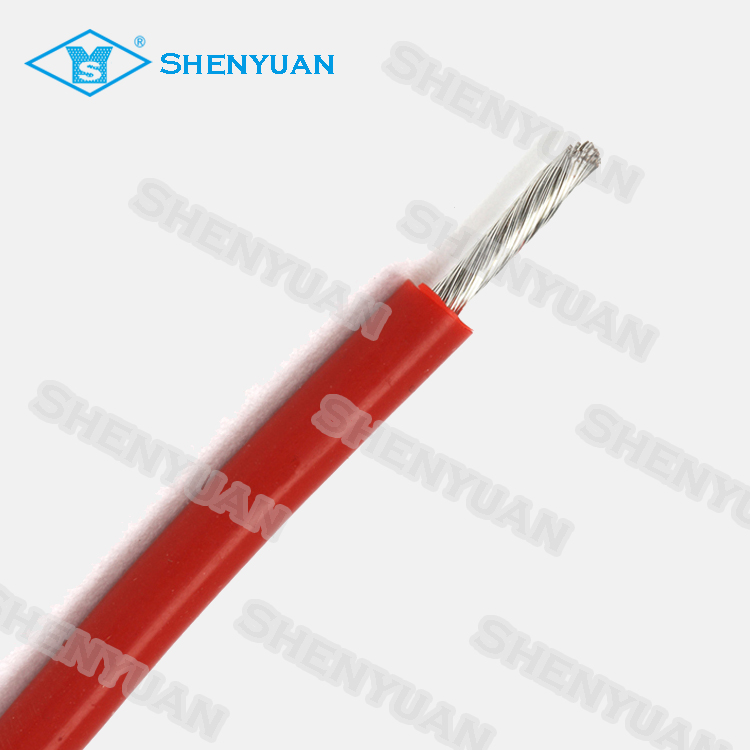

▪ -X: tinned copper conductor
▪ -N: Nickel plated copper conductor
▪ Colour：red / yellow / blue / white / black / yellow green / brown, etc.
(Two-color insulation/ Surface marking)
Characteristics:
▪ RoHS Compliant
▪ UL 758 Appliance Wiring Material
▪ Flame retardant grade: UL1581 (VW-1),IEC 60332-1-2
▪ Perfect mechanical and chemical properties
▪ Resistant to oil, strong acids, strong alkalis, strong oxidants, etc.
Application：
The products are widely used in electrical wiring harnesses, igniter， motors, electronic appliances, voltage cabinets, high-voltage motors, and other fields
Technical Date of UL 1911
|
Code |
1911 |
||||||
|
Voltage |
5KV |
10KV |
15KV |
||||
|
AWG |
Ω |
Thickness |
OD |
Thickness |
OD |
Thickness |
OD |
|
24 |
89.2 |
0.0197 |
0.0630 |
0.0236 |
0.0709 |
0.0256 |
0.0748 |
|
22 |
56.4 |
0.0197 |
0.0689 |
0.0236 |
0.0768 |
0.0256 |
0.0807 |
|
20 |
35.3 |
0.0197 |
0.0748 |
0.0236 |
0.0827 |
0.0256 |
0.0866 |
|
18 |
22.2 |
0.0197 |
0.0846 |
0.0236 |
0.0925 |
0.0256 |
0.0965 |
|
17 |
17.6 |
0.0197 |
0.0906 |
0.0236 |
0.0984 |
0.0256 |
0.1024 |
|
16 |
14.0 |
0.0197 |
0.0984 |
0.0236 |
0.1024 |
0.0256 |
0.1102 |
|
14 |
8.78 |
0.0197 |
0.1122 |
0.0236 |
0.1201 |
0.0256 |
0.1240 |
|
12 |
5.53 |
0.0197 |
0.1339 |
0.0236 |
0.1417 |
0.0256 |
0.1457 |
|
10 |
3.47 |
0.0197 |
0.1594 |
0.0236 |
0.1673 |
0.0256 |
0.1693 |
|
Voltage |
20KV |
25KV |
30KV |
||||
|
AWG |
Ω |
Thickness |
OD |
Thickness |
OD |
Thickness |
OD |
|
24 |
89.2 |
0.0276 |
0.0787 |
0.0295 |
0.0827 |
0.0335 |
0.0906 |
|
22 |
56.4 |
0.0276 |
0.0846 |
0.0295 |
0.0886 |
0.0335 |
0.0965 |
|
20 |
35.3 |
0.0276 |
0.0906 |
0.0295 |
0.0945 |
0.0335 |
0.1024 |
|
18 |
22.2 |
0.0276 |
0.1004 |
0.0295 |
0.1043 |
0.0335 |
0.1122 |
|
17 |
17.6 |
0.0276 |
0.1063 |
0.0295 |
0.1102 |
0.0335 |
0.1181 |
|
16 |
14.0 |
0.0276 |
0.1142 |
0.0295 |
0.1181 |
0.0335 |
0.1260 |
|
14 |
8.78 |
0.0276 |
0.1280 |
0.0295 |
0.1319 |
0.0335 |
0.1398 |
|
12 |
5.53 |
0.0276 |
0.1496 |
0.0295 |
0.1535 |
0.0335 |
0.1614 |
|
10 |
3.47 |
0.0276 |
0.1732 |
0.0295 |
0.1772 |
0.0335 |
0.1870 |
|
Voltage |
35KV |
40KV |
50KV |
||||
|
AWG |
Ω |
Thickness |
OD |
Thickness |
OD |
Thickness |
OD |
|
24 |
89.2 |
0.0354 |
0.0945 |
0.0394 |
0.1024 |
0.0453 |
0.1142 |
|
22 |
56.4 |
0.0354 |
0.1004 |
0.0394 |
0.1083 |
0.0453 |
0.1201 |
|
20 |
35.3 |
0.0354 |
0.1063 |
0.0394 |
0.1142 |
0.0453 |
0.1260 |
|
18 |
22.2 |
0.0354 |
0.1161 |
0.0394 |
0.1240 |
0.0453 |
0.1358 |
|
17 |
17.6 |
0.0354 |
0.1220 |
0.0394 |
0.1299 |
0.0453 |
0.1417 |
|
16 |
14.0 |
0.0354 |
0.1299 |
0.0394 |
0.1378 |
0.0453 |
0.1496 |
|
14 |
8.78 |
0.0354 |
0.1437 |
0.0394 |
0.1516 |
0.0453 |
0.1634 |
|
12 |
5.53 |
0.0354 |
0.1654 |
0.0394 |
0.1732 |
0.0453 |
0.1850 |
|
10 |
3.47 |
0.0354 |
0.1909 |
0.0394 |
0.1988 |
0.0453 |
0.2106 |
