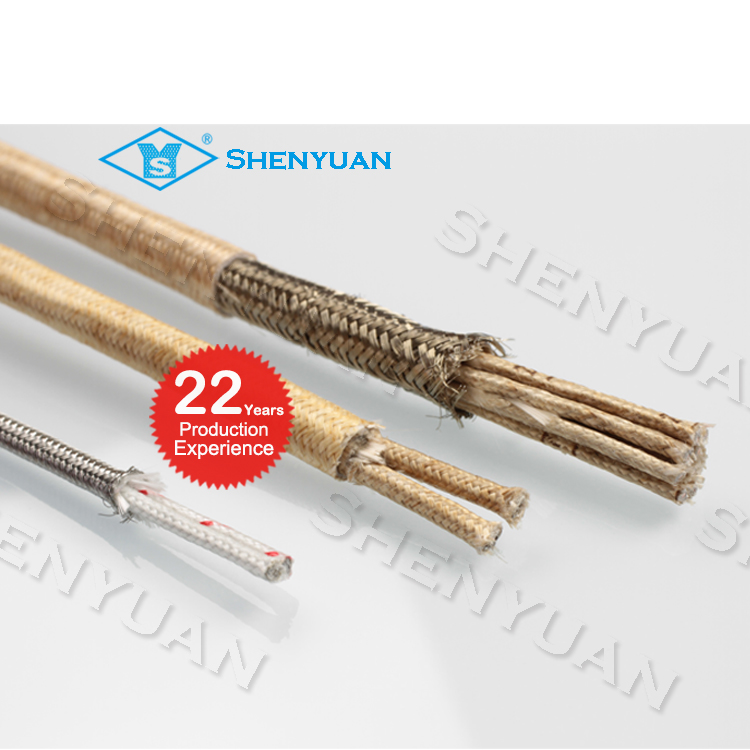

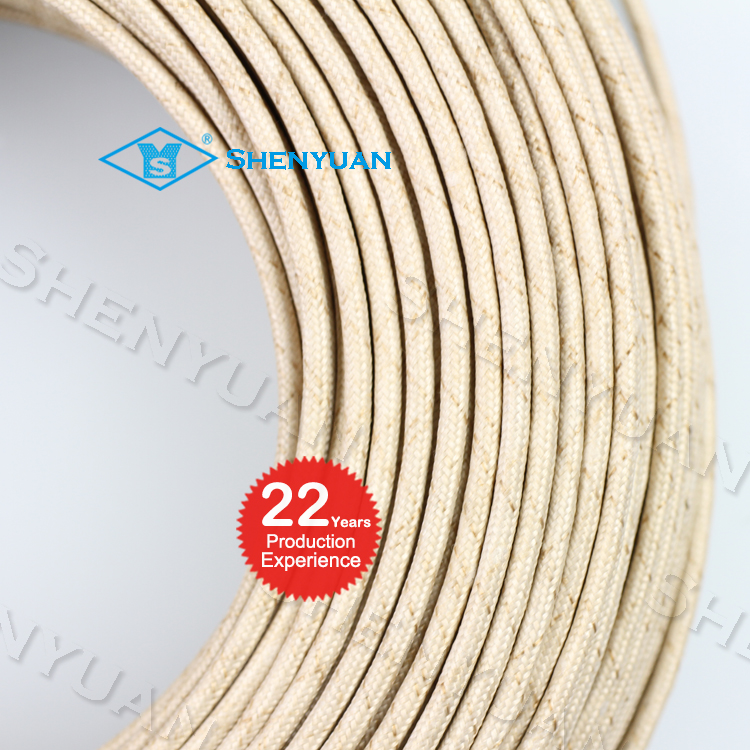

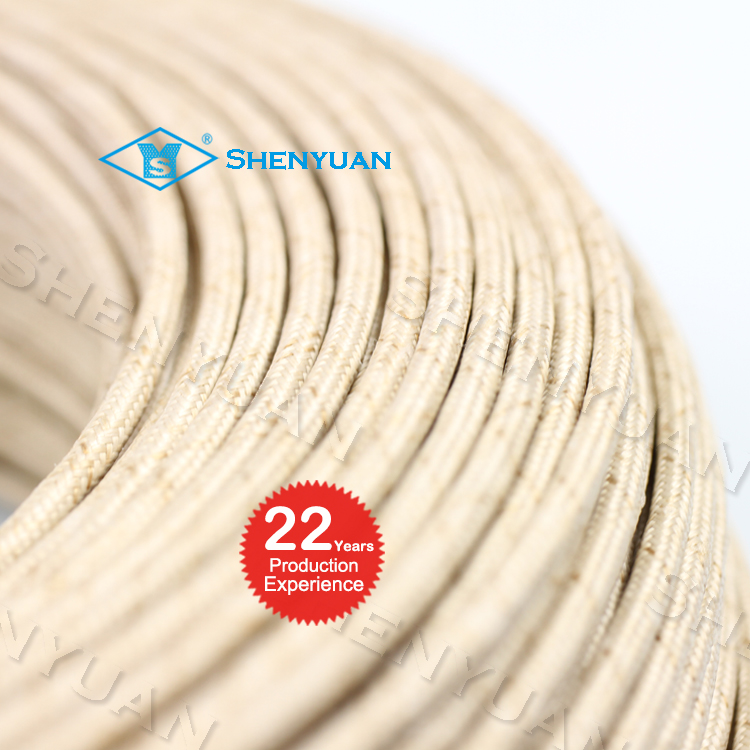

UL5128

Short Description:

▪22AWG~4AWG,stranded or solid
▪Conductor:Nickel plated copper

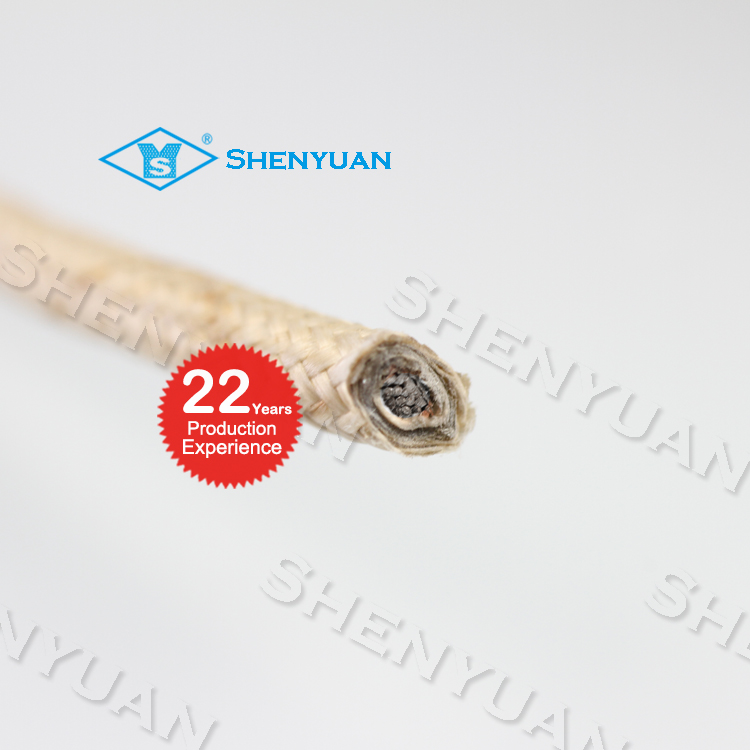

▪Insulation: Mica tape+fiberglass lapping + fiberglass braid
▪Temperature range:-60~450℃
▪Rated voltage:300V
▪Compliance UL file E252215


Product Detail

FAQ

Product Tags

Options:

▪ -Ni: pure nickel conductor

▪ Shield (optional): nickel-plated copper wire or stainless steel braid

▪ Braiding Colour:natural or color stripes (red / yellow / blue/ green / black / yellow green , etc.)

Characteristics:

▪ UL 758 Appliance Wiring Material

▪ Nickel-plated or pure nickel stranded wire, has good high temperature oxidation resistance.

▪ mica tape has excellent high temperature resistance and combustion resistance, good insulation performanceby various light radiation, high temperature, humidity, and various chemicals, so that the insulating layer has accelerated aging and shortens the life of the product;.

Application:

It is used in high-temperature operation fields such as electric heating, petrochemicals, mechanical and electrical equipment, power plants, drying tunnels, drying rooms, heating light sources, and electric appliances. The defects are low pressure resistance and general fire resistance.

Technical Date of UL 5128

UL code

5128

5335

5107

Voltage

300V

600V

600V

Temp

450

450

450

AWG

Ω

OD(inches)

Weight
(KG/KM)

OD(inches)

Weight
(KG/KM)

OD(inches)

Weight
(KG/KM)

4/0

0.17





0.6968

1091.68

0.7126

1110.36

3/0

0.22





0.6417

901.91

0.6575

919.07

2/0

0.28





0.5748

710.86

0.5906

726.26

1/0

0.35





0.5118

539.22

0.5276

552.87

1

0.44





0.4803

470.19

0.4961

482.96

2

0.56





0.4409

387.95

0.4567

399.62

3

0.70





0.4016

305.08

0.4173

315.44

4

0.88

0.3465

236.43

0.3504

249.06

0.3661

256.40

5

1.11

0.3071

181.29

0.3110

192.45

0.3268

198.97

6

1.41

0.2874

158.10

0.2913

163.83

0.3071

169.84

7

1.76

0.2480

117.72

0.2520

124.76

0.2677

129.95

8

2.23

0.2362

95.13

0.2402

103.11

0.2559

109.63

10

3.55

0.2047

68.28

0.2087

77.92

0.2244

81.10

11

4.48

0.1811

51.53

0.1850

54.25

0.2008

64.51

12

5.75

0.1496

45.14

0.1614

49.82

0.1693

54.15

13

7.26

0.1260

33.06

0.1378

37.78

0.1457

41.45

14

9.15

0.1181

29.69

0.1299

34.06

0.1378

35.69

15

11.50

0.1063

24.00

0.1181

26.53

0.1260

29.76

16

14.60

0.1024

19.77

0.1142

25.11

0.1220

26.78

17

18.50

0.0945

18.02

0.1063

20.19

0.1142

22.99

18

23.50

0.0906

17.06

0.1024

17.43

0.1102

20.01

20

37.40

0.0827

11.07

0.0906

12.42

0.1063

16.38

22

59.40

0.0787

8.32

0.0866

12.19

0.0945

14.49
