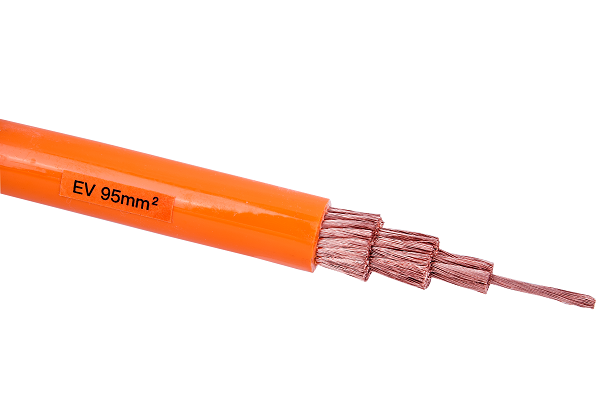

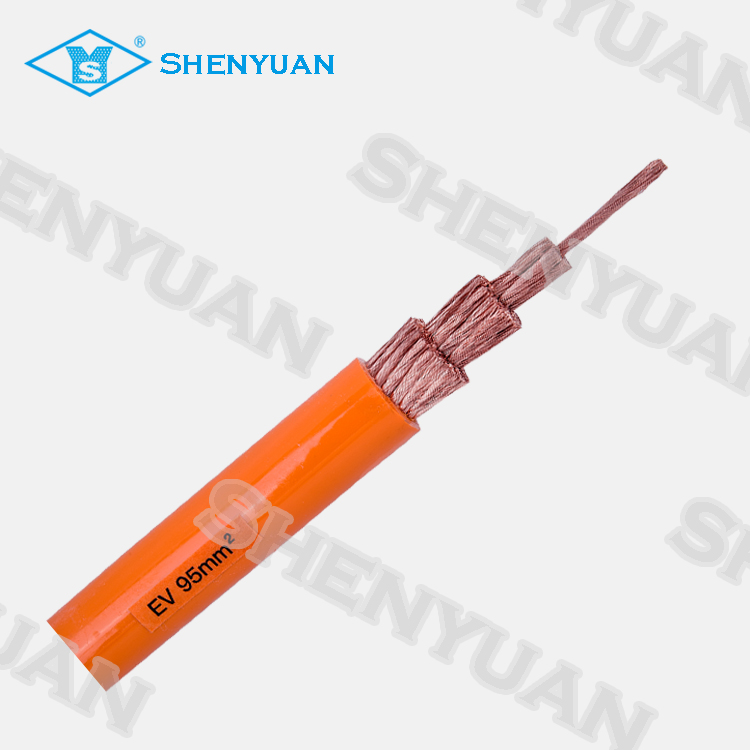

EV

Short Description:

▪28AWG~120mm²,stranded or solid
▪Bare copper or tin-plated copper wire
▪Insulation:Extruded XLPO or XLPE
▪Temperature range:-40~125℃
▪Rated voltage:600V/1500V


Product Detail

FAQ

Product Tags

Options:

▪ Shielding (optional): bare copper / tinned copper wire braided + aluminum foil wrapping.

▪ Colour:red / yellow / blue / white / black / yellow green / brown, etc.

(Two-color insulation/ Surface marking)

Characteristics:

▪ RoHS Compliant

XLPE:

▫ Excellent electrical insulation properties.

▫ Halogen-free, good environmental protection.

▫ Good mechanical properties and good wear resistance.

▫ Passed a single vertical combustion test, has good flame retardancy.

▫ Good heat resistance, long-term working temperature can reach 125 ℃.

▫ Excellent low temperature toughness, and has passed the low temperature bending test of -40 ℃.

▫ Strong acid and alkali resistance and oil resistance.

▫ The combustion releases water and CO2, less harm to the environment and conforms to the modern fire safety request.

Application:

The products are widely used in electrical wiring harnesses, sensing lines, PTC thermistors, coating equipment, automotive internal connection lines, motors, lighting fixtures, electronic appliances, voltage cabinets, high-voltage motors, and other fields.

The Production standards comply with ISO 6722; QC/T 1037; LV 216 etc.

LV 216 specifies cable design, dimensions, etc
Customer requirements for the basic properties of silicone rubber: Tensile strength > 8 MPa Elongation > 300% Hardness 55-70 ShA
Class E(180 ° C hybrid) and Class F(200 ° C) require silicone rubber
Class E
Tear Strength ISO 34-1 B > 15 N/mm
Long-term aging of cable 180℃*3000 hours
Class F
Long-term aging of cable 200℃*3000 hours
Tear Strength ISO 34-1 B > 10 N/mm

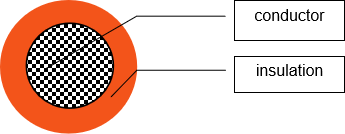

EV 结构
EV

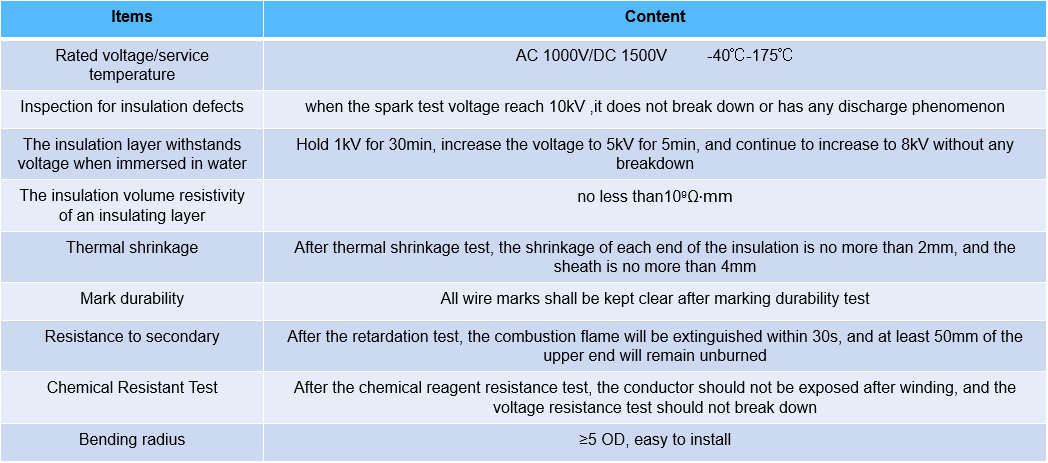

QC/T 1037 Unshielded cable performance requirements

EV 产品标准

Technical Data of EV Wires

Voltage

AC 600V/DC 900V

AC 1000V/DC 1500V

Temp

125℃

125℃

AWG

Ω

OD(inches)

Weight (KG/KM)

OD(inches)

Weight (KG/KM)

16

12.70

0.1181

21.26

0.1575

29.19

13

7.60

0.1535

35.46

0.1772

41.16

12

4.71

0.1654

51.29

0.2106

62.59

10

3.14

0.2047

72.90

0.2362

83.04

8

1.82

0.2362

113.64

0.2677

125.23

6

1.16

0.2795

176.62

0.3228

195.67

4

0.74

0.3465

273.02

0.3858

294.07

2

0.53

0.4094

386.08

0.4488

410.75

1

0.37

0.4803

538.27

0.5315

576.08

2/0

0.26

0.5669

764.29

0.5945

787.66
