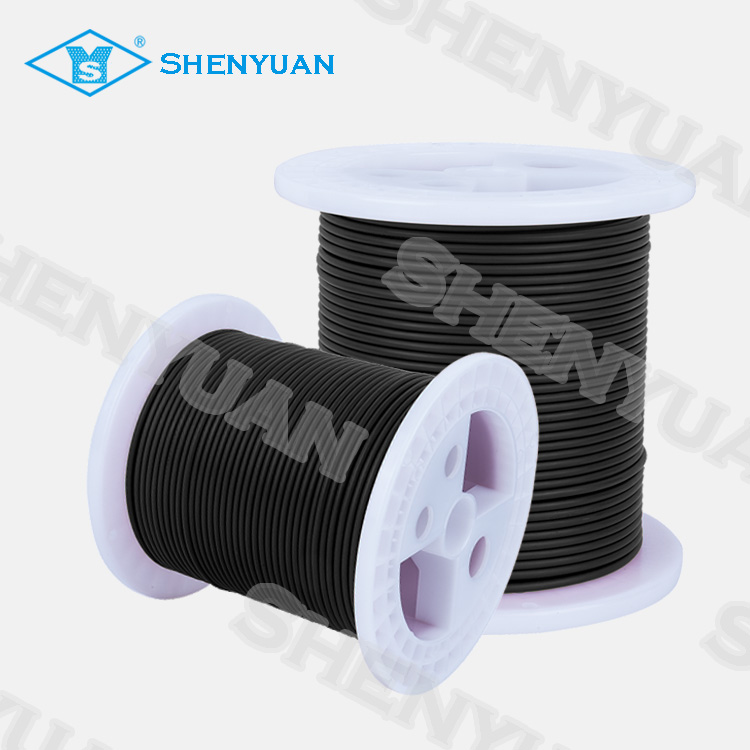

JX

Short Description:

Product model: SC/RC/KCA/KCB/KX/NC/NX/EX/JX/TX
Executive standard: GB/T4989-1994


Product Detail

FAQ

Product Tags

Product Features:

▪ Rated voltage: no requirements

▪ Working temperature: -25 ~ +200 ° C

▪ Conductor: solid or stranded alloy wire

▪ Insulation: PVC / Teflon

▪ Protective cover: PVC / Teflon / alkali-free glass wire

▪ Screening: tinned copper wire or galvanized steel wire or aluminum-plastic composite tape

▪ Color: red / yellow / blue / white / black / gray / brown, etc.

Uses:

Thermocouple compensation wire It is a pair of insulated wire with the same nominal value of the thermoelectromotive force of the matched thermocouple in a certain temperature range (including normal temperature), used to connect the thermocouple And measuring devices to compensate for errors caused by temperature changes at their junction with the thermocouple. Divided into extended type and compensated type.

Delivery requirements:

According to the contractual agreement between the two parties, short delivery of not less than 10 meters is allowed. The shortage quantity should not exceed 10% of the total length of delivery.

thermocouple wire

After twenty years development, the group holds two industrial parks in Shanghai, areas where the economy has been greatly developed, covering a total land area of 20 thousand square meters. Shenyuan has serviced to 15000 customers,focus on providing customers with comprehensive solutions.

新厂房

New factory and old factory : Two Manufacture Centers in Shanghai

老厂房

Old factory take land over 30000 m2

新厂房

New factory take land over 50000 m2 / Start operating in 2020

DSC_0018_副本

Conductor Warehouse

全景图2_副本

Manufacture Department

全景图1_副本

Manufacture Department
