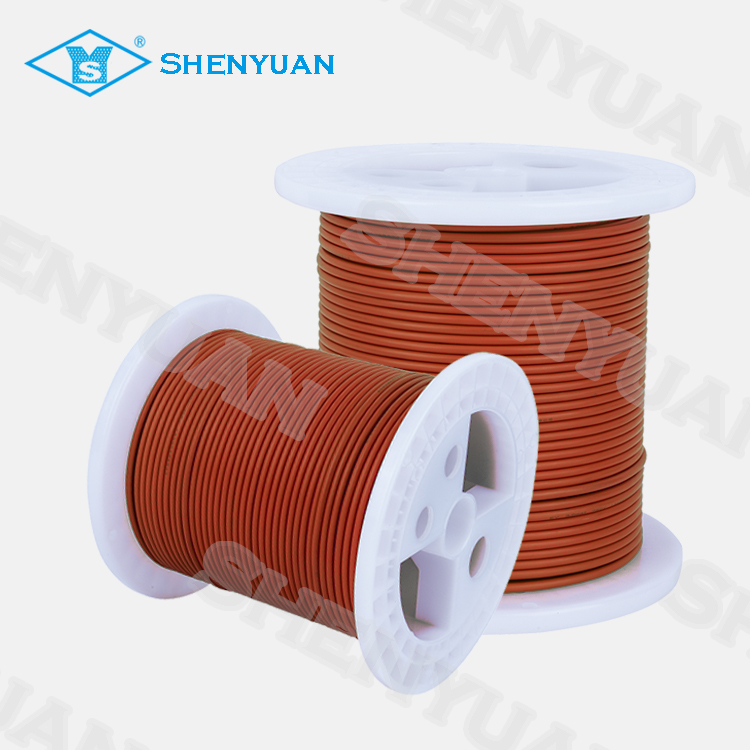

JE

Short Description:

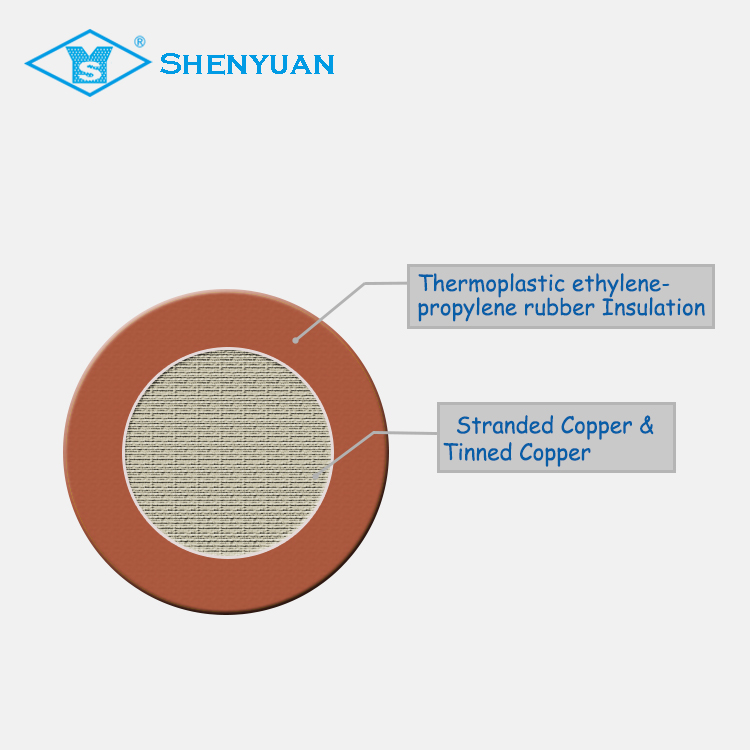

▪0.5mm²~120mm²,stranded or solid
▪Conductor:Copper or Tin plated copper
▪Insulation:thermoplastic ethylene-propylene rubber
▪Temperature range:-40~120℃
▪Rated voltage:500V(960V)、1000V(1140V)、3000V、6000V、10000V


Product Detail

FAQ

Product Tags

Options:

▪ We can offer the copper or the tinned copper

▪ Braiding Colour:red / yellow / blue / white / black / yellow green / brown, etc.

(Surface marking)

Characteristics:

▪ RoHS Compliant

▪ Flame retardant grade: UL1581 (FT2)

▪ It has the advantages of high strength, high flexibility, low temperature resistance, distortion resistance, heat resistance, light aging resistance, mildew resistance, waterresistance, acid resistance, alkali resistance, salt spray resistance, low density and so on.

Application:

The product is suitable for F class and B class insulated motor and electrical lead wiring with rated ac voltages of 690V, 1140V, 3000V, 6000V, 10000V and below. It is widely used in wind power, port machinery, mobile, refrigeration and other high-power motor.

Technical Data of JE

Code

JE

Temp

120

Voltage

500V

1000V

3000V

6000V

10KV

AWG

Ω

OD(inches)

OD(inches)

OD(inches)

OD(inches)

OD(inches)

20

40.1

0.1024

0.1496







19

26.7

0.1102

0.1575







17

20.0

0.1181

0.1654







16

13.7

0.1260

0.1732







13

8.21

0.1496

0.1969

0.3071





12

5.09

0.1890

0.2205

0.3307





10

3.39

0.2205

0.2598

0.3622





9

2.55

0.2441

0.2835

0.3858





8

1.95

0.2835

0.3071

0.4094





6

1.24



0.3543

0.4567

0.6299



4

0.795



0.4134

0.5118

0.6850

0.8898

2

0.565



0.4567

0.5512

0.7283

0.9291

1

0.393



0.5315

0.6220

0.7874

0.6102

2/0

0.277



0.6220

0.7008

0.8858

1.0827

3/0

0.210



0.7283

0.8071

0.9646

1.1732
