UL1726

Short Description:

▪Insulation:PFA
▪Temperature range:-80~250℃
▪Conductor:Tin silver or nickel plated copper.
▪32AWG~10AWG,stranded or solid.
▪Rated voltage:300V
▪Compliance UL file E252215


Product Detail

FAQ

Product Tags

Options:

▪ -X: tinned copper conductor

▪ -N: nickel plated copper conductor

▪ Colour:red / yellow / blue / white / black / yellow green / brown, etc.

(Two-color insulation/ Surface marking)

Characteristics:

▪ RoHS Compliant

▪ UL 758 Appliance Wiring Material

▪ Maximum length of a piece of wire: 4 kilometers

▪ Perfect mechanical and chemical properties

▪ Flame retardant grade: UL1581 (VW-1),IEC 60332-1-2

▪ Resistant to oil, strong acids, strong alkalis, strong oxidants, etc.

Application:

It can be used in following applications:

automotive sensors, motors, air conditioners, microwave ovens, electronic disinfection cabinets, electricity Internal wiring for heaters, electric ovens, electric woks, lighting fixtures, etc.

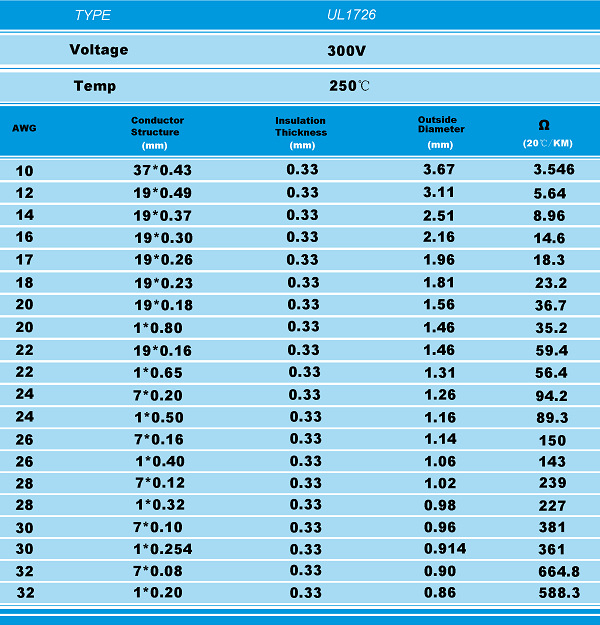

Technical Date of UL 1726

UL1726

UL Certificate

Shanghai Shenyuan Hi-temp Wire Co.,Ltd is a well experienced PFA insulated wire supplier. Since 1997 we've been producing a wide variety of PFA wires, our Own model AF 250 and UL approved PFA wires as following:

UL1707 UL1708

UL1709 UL1726 UL1710 UL1716 UL1727

UL1857 UL1860 UL1858 UL1859 UL1882

UL1929 UL1930 UL1933 UL10110

UL10129 UL10362 UL10485

UL10486 UL10503 UL10142

Our PFA wires can meet you 99% requirements!

UL 认证

New factory and old factory:Two manufacture centers in Shanghai

老厂房

Old factory take land over 30000 m2

新厂房

New factory take land over 50000 m2 / Start operating in 2020

DSC_0018_副本

Conductor Warehouse

全景图2_副本

Manufacture Department

全景图1_副本

Manufacture Department
