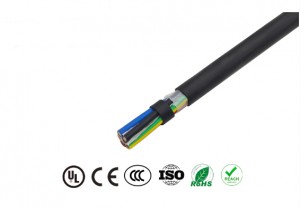

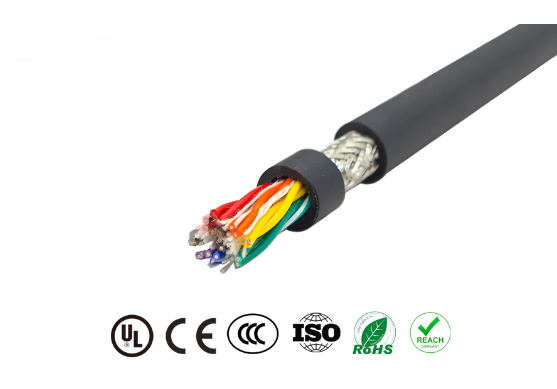

Robot cable UL2517
|
UL2517 |
|
|
parameter type |
detailed description |
|
conductor |
Material: Tin-plated copper or bare copper |
|
Structure: Multi-strand twisted, with high flexibility |
|
|
UL 758 / UL 1581- Standard: Complies with UL 758 / UL 1581 |
|
|
40 AWG Minimum cross-sectional area: 40 AWG |
|
|
Insulation |
- Material: PVC (Polyvinyl chloride) |
|
- Thickness: 0.76mm (typical value) |
|
|
Color: Multiple options available (black, red, blue, white, etc.) |
|
|
Electrical properties |
300V Rated voltage: 300V |
|
Test voltage: 2000V (50Hz, 1 minute) |
|
|
Thermal characterization |
-20℃ to +80℃ - Operating temperature range: -20℃ to +80℃ |
|
+105℃ - Short-term maximum temperature: +105℃ |
|
|
- Flame retardant performance: Complies with UL VW-1 / FT-1 standards |
|
|
Mechanical property |
- Bending radius: Usually six times the outer diameter of the cable |
|
- Tensile strength: ≥10 N |
|
|
- Elongation at break: ≥100% (Insulation layer) |
|
|
Other performances |
- Chemical resistance: Resistance to oil and acids and alkalis |
|
- Environmental performance: Complies with RoHS and REACH standards |
|
|
The comparative advantages of UL2517 cable over other cables |
|||
|
Comparison dimension |
UL2517 |
PVC cable |
Silicone rubber cable |
|
Temperature range |
-20℃ to +105℃ |
-20℃ to +70℃ |
-60℃ to +180℃ |
|
Flexibility |
higher |
general |
extremely high |
|
flame retardation
|
Conforming to UL VW-1 / FT-1 |
general |
UL 94 V-0 / IEC 60332 |
|
Cost |
medium |
low |
high |
|
application scenarios |
Electronic devices, household appliances, industrial control |
conventional environment |
High temperature, corrosion, precision equipment |
Application scenario scenario categories detailed electronic equipment computer, printer, monitor internal cable home appliances such as refrigerators, washing machines, microwave ovens
and other internal wiring industrial control PLC, sensor, automation equipment signal transmission communication equipment such as telephone, network equipment, such as weak current signal transmission
Advantage summarized
flexibility: stranded conductor, suitable for frequent bending occasions.Flame retardant performance: conform to the standard UL/FT VW – 1-1, high security.
A variety of colors: to facilitate the identification and classification.
Wide application: suitable for electronics, home appliances, industrial and other fields. Environmental compliance: conform to RoHS, REACH environmental protection standards, etc. Through the above structural parameters and the contrast, can more clearly understand the performance characteristics and application advantages of UL2517 cable. If you have any specific requirements, please feel free to discuss further!
