GN450(MGT Wire)

Short Description:

▪0.5mm²~95mm²,stranded or solid
▪Conductor:Nickel plated copper
▪Insulation: Mica tape+fiberglass lapping + fiberglass braid
▪Temperature range:-60~450℃
▪Rated voltage:500V
▪Compliance UL file E252215


Product Detail

FAQ

Product Tags

GN450 Series Fire resistant wires

Shanghai Shenyuan Hi-temp Wire Co.,Ltd is a well experienced Fiberglass lead wire supplier. Since 1997 we've been producing a wide variety of fire resistant wires,our model : GN350 GN450 GN500 GN800 GN1000 GN1200 Series to the UL approved wires as following:

UL5107 UL5128 UL5335



Our Model: GN450 Series Fire resistant wires can resist the 450 C high temperature

(500 C in short time) ,its construction as following:

Mica tape+fiberglass lapping + fiberglass braiding

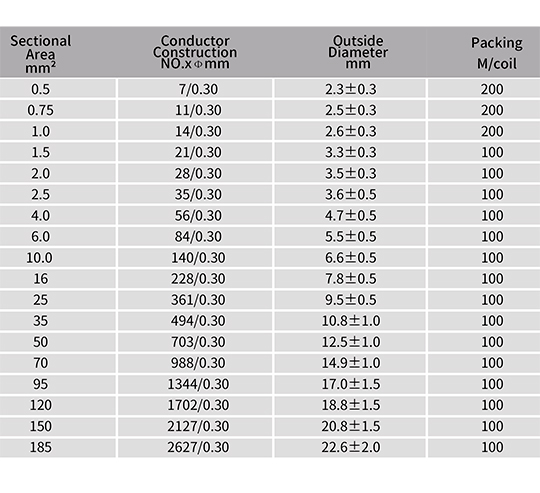

You can select the cross section of GN450 :  0.5mm2 to 95mm2.

The outer diameter is: 2.3mm to 17.4mm.

_DSC2500_副本
_DSC2501_副本

Our Model: GN450 Series Fire resistant wires can resist the 450 C high temperature

(500 C in short time) ,its construction as following:

Mica tape+fiberglass lapping + fiberglass braiding

You can select the cross section of GN450 :  0.5mm2 to 95mm2.

The outer diameter is: 2.3mm to 17.4mm.

_DSC2485_副本

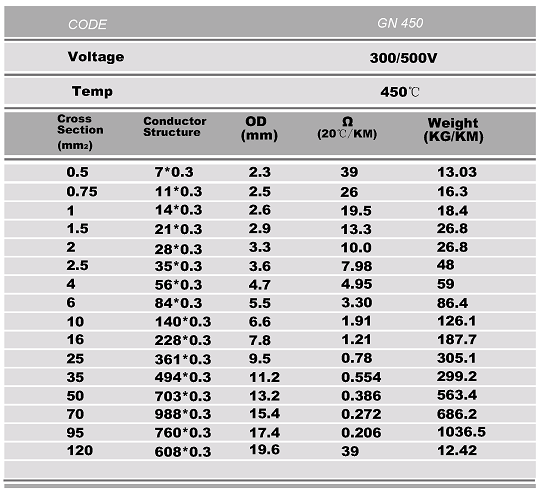

Technical Date of GN450

GN450

Inspection process

_DSC2352_副本
_DSC2350_副本
_DSC2356_副本
_DSC2341_副本
