EVP 125℃

Short Description:

▪0.2mm²~120mm²,stranded or solid conductor
▪Bare copper or Tinned copper wire
▪Insulation:Extruded XLPO or XLPE
▪Temperature range:-40~125℃
▪Rated voltage:1500V


Product Detail

FAQ

Product Tags

Options:

▪ Shielding (optional): bare copper / tinned copper wire braided + aluminum foil wrapping.

▪ Colour:red / yellow / blue / white / black / yellow green / brown, etc.

(Two-color insulation/ Surface marking)

▪ Code Printing: Support printing on wires

Characteristics:

▪ RoHS Compliant

XLPE:

▫ Excellent electrical insulation properties.

▫ Halogen-free, good environmental protection.

▫ Good mechanical properties and wear resistance.

▫ has very good resistance to strong acid , alkali and oil.

▫ Good heat resistance, long-term working temperature can reach 125 ℃.

▫ Has very good resistance to strong acid , alkali and oil. Its combustion products are mainly water and carbon dioxide, which has less

harm to the environment and meets the requirements of modern fire safety.

▫ A sort of environment-friendly insulation material and doesn’t contain any Halogen chemicals,past a single vertical combustion test

also with good flame retardancy.

Application:

① Connecting high-voltage batteries, electric control units and motors;

② Internal connection wires of high-voltage electrical appliances such as air conditioners and auxiliary heating

③ Internal connection wires of the battery;

④ Connecting the charging port and the battery pack or charger

The Production standards comply with ISO 6722; QC/T 1037; LV 216 etc.

LV 216 specifies cable design, dimensions, etc
Customer requirements for the basic properties of silicone rubber: Tensile strength > 8 MPa Elongation > 300% Hardness 55-70 ShA
Class E(180 ° C hybrid) and Class F(200 ° C) require silicone rubber
Class E
Tear Strength ISO 34-1 B > 15 N/mm
Long-term aging of cable 180℃*3000 hours
Class F
Long-term aging of cable 200℃*3000 hours
Tear Strength ISO 34-1 B > 10 N/mm

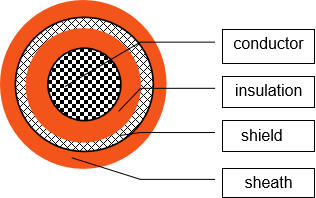

EVP 结构

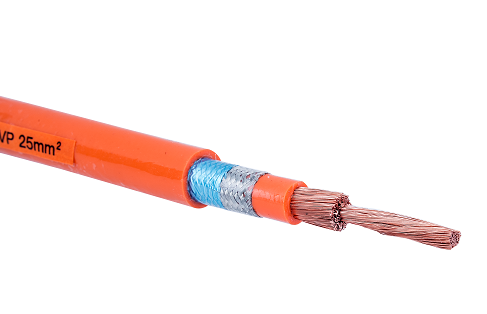

EVP

Performance requirements for shielded cables in QC/T 1037

EVP 产品标准

Technical Data of EVP Wires

Voltage

AC 600V/DC 900V

AC 1000V/DC 1500V

Temp

125℃

125℃

AWG

Ω

OD(inches)

Weight (KG/KM)

OD(inches)

Weight (KG/KM)

16

12.70

0.1181

21.26

0.1575

29.19

13

7.60

0.1535

35.46

0.1772

41.16

12

4.71

0.1654

51.29

0.2106

62.59

10

3.14

0.2047

72.90

0.2362

83.04

8

1.82

0.2362

113.64

0.2677

125.23

6

1.16

0.2795

176.62

0.3228

195.67

4

0.74

0.3465

273.02

0.3858

294.07

2

0.53

0.4094

386.08

0.4488

410.75

1

0.37

0.4803

538.27

0.5315

576.08

2/0

0.26

0.5669

764.29

0.5945

787.66



After twenty years development, the group holds two industrial parks in Shanghai, areas where the economy has been greatly developed, covering a total land area of 20 thousand square meters. Shenyuan has serviced to 15000 customers,focus on providing customers with comprehensive solutions.

shenyuan-001

New factory and old factory :Two Manufacture Centers in Shanghai

老厂房

Old factory take land over 30000 m2

新厂房

New factory take land over 50000 m2 / Start operating in 2020

DSC_0018_副本

 15000 m2 Conductor Warehouse

全景图1_副本

EVP Wire Production Lines

全景图2_副本

FEP/PFA Wires Production Lines
